Duplex Stainless Filler Metal

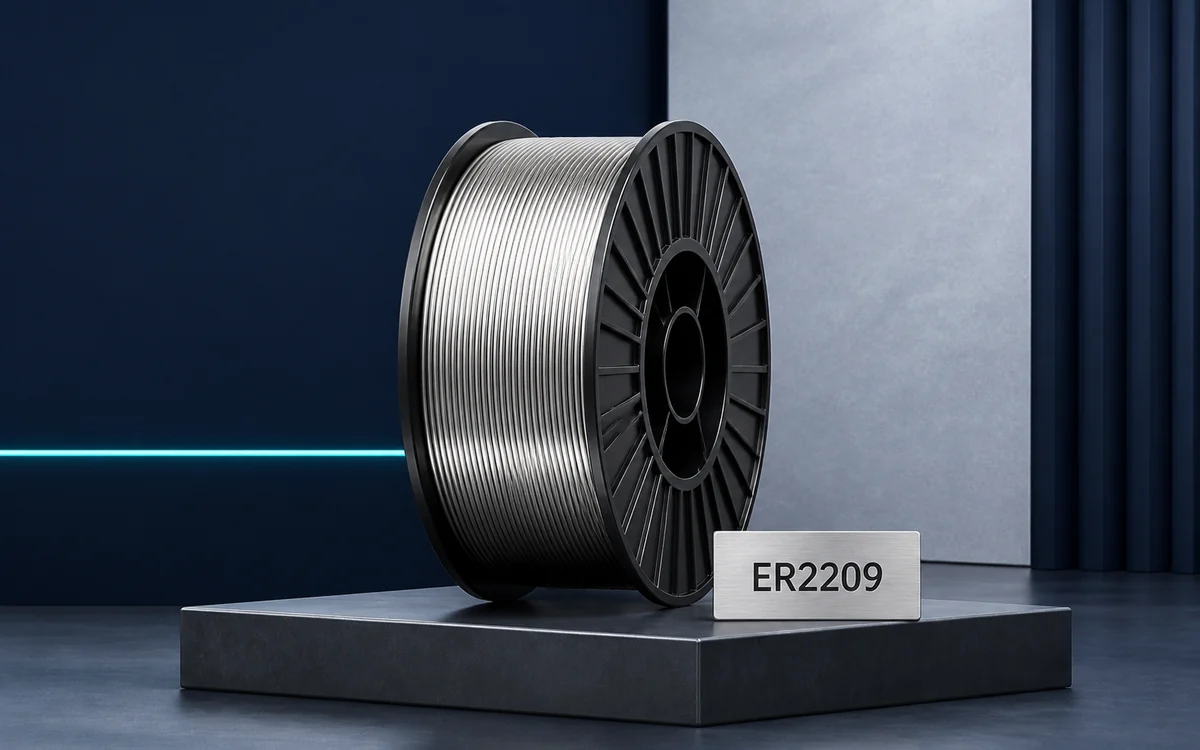

ER2209 wire for controlled duplex stainless welding procedures
ER2209 is a duplex stainless filler-metal classification commonly used for welding 22Cr duplex grades such as 2205 when required by the approved procedure. Duplex weld quality depends on heat input, interpass temperature, shielding and backing gas, joint geometry, dilution and cooling rate so that corrosion resistance and phase balance are controlled together.
ClassificationER2209
Primary use22Cr duplex stainless joints
Supply routeSpool wire & cut rods
Source ER2209 Duplex Stainless Steel Welding Wire | YS2209 | DIN 1.4462 from SAKY METAL in project-specific sizes and finishes, with mill test certificates.
Technical procurement data
Standards, supply and inspection
ER2209 Duplex Stainless Steel Welding Wire | YS2209 | DIN 1.4462 ER2209 is a duplex stainless filler-metal classification commonly used for welding 22Cr duplex grades such as 2205 when required by the approved procedure. Duplex weld quality depends on heat input, interpass temperature, shielding and backing gas, joint geometry, dilution and cooling rate so that corrosion resistance and phase balance are controlled together.
| Material / grade | ER2209; GB/T H00Cr22Ni9Mo3N; JIS YS2209; DIN 1.4462 |
|---|---|
| Product form | Bare solid welding wire on spool and straight cut-length filler rods by enquiry; other bare-wire packages subject to review. |
| Standards and order reference | AWS A5.9/A5.9M classification; state required revision plus project, code and WPS references. |
| Dimensions and tolerances | Specify welding process, wire or rod diameter, cut length where applicable, spool or package type and tolerance. |
| Surface and supply condition | Clean bare filler metal, securely packaged to limit handling damage and contamination; storage requirements by purchase order. |
| Inspection options | Visual and dimensional inspection, classification or chemistry review, traceability and purchaser-specific testing by agreement. |
| MTC and traceability | Certificate of conformance and heat or batch traceability; EN 10204 documentation or additional records when agreed. |
| Typical applications | Duplex 2205 piping and equipment; Offshore and oil-and-gas fabrication; Chemical and petrochemical process systems; Desalination and chloride-service equipment |
| RFQ checklist | Grade and standard revision; base metals; process; diameter; package; quantity; WPS; testing; certificates; destination; service conditions. |
Final compliance is defined by the purchase order, approved drawing and issued mill documentation. Availability is confirmed for each grade, size and production route.
SAKY METAL reviews ER2209 enquiries against the stated classification, welding process, diameter, package, base materials, WPS, service conditions, inspection scope and documentation. Availability is confirmed for each requested combination; no stock, mechanical-property or corrosion-performance claim is implied without an agreed specification.
Selection note: Provide the base-metal UNS or EN grade, product thickness, process, joint design, heat-input window, interpass limit and corrosion-test requirements. Duplex welding parameters must be controlled by the WPS.
Grade Designations and Cross-References
| Product designation | ER2209 bare welding electrode / rod |
|---|---|
| AWS order reference | AWS A5.9/A5.9M ER2209; confirm the required standard revision |
| GB/T cross-reference | H00Cr22Ni9Mo3N |
| JIS cross-reference | YS2209 |
| DIN / European reference | 1.4462 |
| Important | Cross-references support material review but are not blanket substitution approvals. The purchase order, applicable standard revision and qualified WPS govern acceptance. |
Supply Forms and Ordering Parameters
| GMAW / MIG | Bare solid wire on spool or basket by enquiry; specify diameter, package style and net weight. |
|---|---|
| GTAW / TIG | Straight cut-length filler rods by enquiry; specify diameter, rod length, package and identification. |
| Other processes | Submerged-arc or other bare-wire requirements are reviewed against the process, wire/flux combination and governing procedure. |
| Dimensions | Diameter and tolerance must be stated on the RFQ; availability is confirmed for the requested process and package. |
| Identification | Grade, classification, batch or heat reference, size and package identification as required by the purchase order. |
| Documentation | Certificate of conformance, chemistry or classification records and EN 10204 documents when agreed. |
Typical Application Areas
- Duplex 2205 piping and equipment
- Offshore and oil-and-gas fabrication
- Chemical and petrochemical process systems
- Desalination and chloride-service equipment
These application areas are selection prompts rather than design approvals. Confirm filler compatibility through engineering review, the governing construction code and a qualified welding procedure.
Quality, Traceability and Welding Control
Before productionVerify grade, batch and WPS
Match package identification and certificates to the released procedure before wire enters production.
During weldingControl procedure variables
Use the qualified process, shielding system, heat-input range, interpass limit and contamination controls.
After weldingInspect to the project plan
Apply the specified visual, NDT, mechanical, chemistry or corrosion tests and retain traceability records.
Send a Complete ER2209 Welding Wire RFQ
Include ER2209 and the applicable standard revision, both base metals, welding process, wire or rod diameter, package or rod length, quantity, WPS or project specification, shielding requirements, inspection and certificate scope, delivery destination and relevant service conditions.
Related Welding Wire Products
- ER309 Stainless Steel Welding Wire | YS309 | DIN 1.4332/1.4337
- ER316 Molybdenum-Bearing Stainless Steel Welding Wire | YS316 | DIN 1.4430
- ER321 Titanium-Stabilized Stainless Steel Welding Wire | YS321 | DIN 1.4541
- ERNiCrMo-3 Nickel-Chromium-Molybdenum Alloy Welding Wire | N06625 | DIN 2.4831
- ERNiCrMo-4 Nickel-Chromium-Molybdenum Alloy Welding Wire | N10276 | DIN 2.4886
- Browse All Metal Products
ER2209 Welding Wire FAQs
What base materials are commonly associated with ER2209?
It is commonly used with 22Cr duplex grades such as 2205, subject to the governing specification, service and qualified procedure.
Why must heat input be controlled for duplex welding?
Heat input and cooling affect the weld microstructure, phase balance, toughness and corrosion behavior. The approved WPS defines the allowable range.
Which inspection details should be stated?
Include visual and NDT scope, chemistry or ferrite requirements if applicable, corrosion testing, impact testing and certificate requirements.
What information controls final product acceptance?
The purchase order, cited classification and revision, approved WPS, agreed test plan, package identification and issued material documentation control acceptance.
Technical References
- American Welding Society: AWS A5.9/A5.9M filler-metal specification
- Lincoln Electric Techalloy 2209 product data
References define classification scope and selection context. They do not replace the project specification, current standard revision, qualified procedure or supplied certificate.
