High-Carbon Niobium-Stabilized Filler

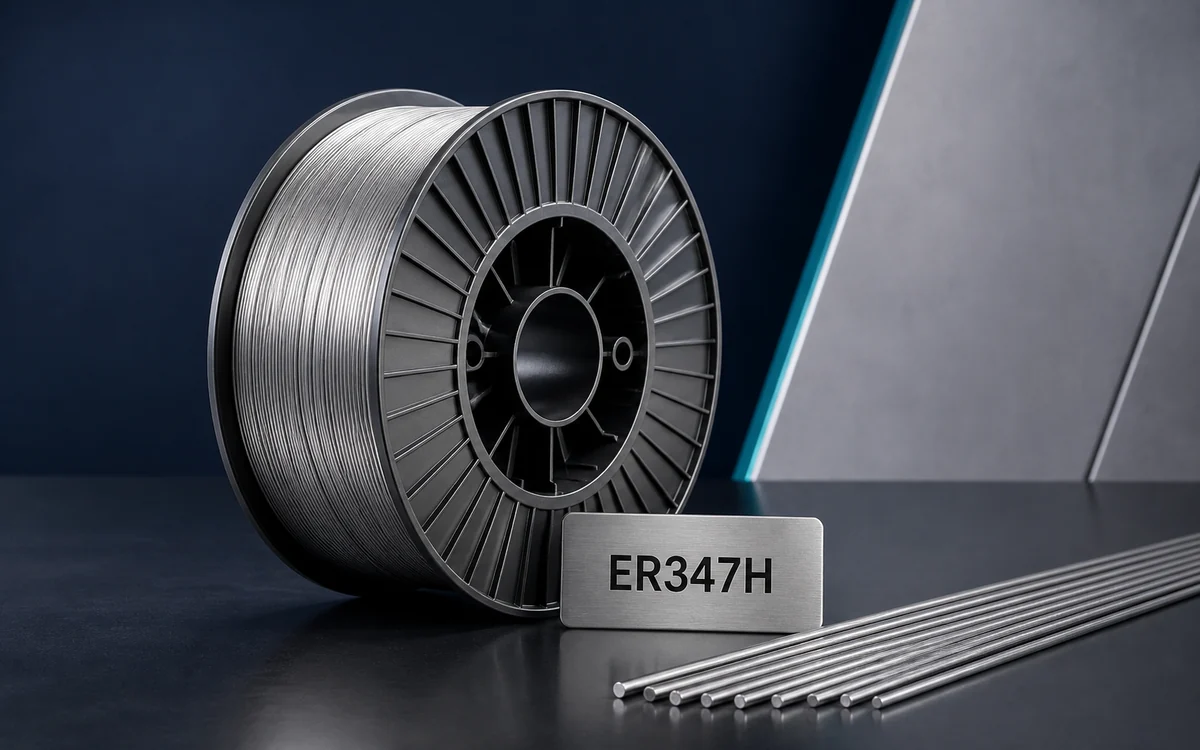

ER347H wire for elevated-temperature stabilized stainless procedures
ER347H is identified here as a high-carbon, niobium-stabilized stainless welding-wire grade. It may be considered for elevated-temperature stabilized stainless fabrication when explicitly required, but creep, oxidation and long-term joint performance must be verified through the governing design code and qualified procedure.
ClassificationER347H
Primary useHigh-carbon stabilized stainless joints
Supply routeSpool wire & cut rods
Request ER347H stainless steel welding wire with the required standard, dimensions, tolerance, finish, inspection and mill test certificates from SAKY METAL.
Technical procurement data
Standards, supply and inspection
ER347H High-Carbon Niobium-Stabilized Stainless Steel Welding Wire | YS347H | DIN 1.4551 ER347H is identified here as a high-carbon, niobium-stabilized stainless welding-wire grade. It may be considered for elevated-temperature stabilized stainless fabrication when explicitly required, but creep, oxidation and long-term joint performance must be verified through the governing design code and qualified procedure.
| Material / grade | ER347H; GB/T H06Cr20Ni10Nb; JIS YS347H; DIN 1.4551 |
|---|---|
| Product form | Bare solid welding wire on spool and straight cut-length filler rods by enquiry; other bare-wire packages subject to review. |
| Standards and order reference | AWS A5.9/A5.9M classification; state required revision plus project, code and WPS references. |
| Dimensions and tolerances | Specify welding process, wire or rod diameter, cut length where applicable, spool or package type and tolerance. |
| Surface and supply condition | Clean bare filler metal, securely packaged to limit handling damage and contamination; storage requirements by purchase order. |
| Inspection options | Visual and dimensional inspection, classification or chemistry review, traceability and purchaser-specific testing by agreement. |
| MTC and traceability | Certificate of conformance and heat or batch traceability; EN 10204 documentation or additional records when agreed. |
| Typical applications | Elevated-temperature stabilized stainless equipment; Petrochemical and thermal-process fabrication; Heat-resistant piping components; Repair work governed by a qualified high-temperature WPS |
| RFQ checklist | Grade and standard revision; base metals; process; diameter; package; quantity; WPS; testing; certificates; destination; service conditions. |
Final compliance is defined by the purchase order, approved drawing and issued mill documentation. Availability is confirmed for each grade, size and production route.
SAKY METAL reviews ER347H enquiries against the stated classification, welding process, diameter, package, base materials, WPS, service conditions, inspection scope and documentation. Availability is confirmed for each requested combination; no stock, mechanical-property or corrosion-performance claim is implied without an agreed specification.
Selection note: State the H suffix and the exact standard revision. Provide temperature, stress, atmosphere, thermal cycle and base-metal data for elevated-temperature applications.
Grade Designations and Cross-References
| Product designation | ER347H bare welding electrode / rod |
|---|---|
| AWS order reference | AWS A5.9/A5.9M ER347H; confirm the required standard revision |
| GB/T cross-reference | H06Cr20Ni10Nb |
| JIS cross-reference | YS347H |
| DIN / European reference | 1.4551 |
| Important | Cross-references support material review but are not blanket substitution approvals. The purchase order, applicable standard revision and qualified WPS govern acceptance. |
Supply Forms and Ordering Parameters
| GMAW / MIG | Bare solid wire on spool or basket by enquiry; specify diameter, package style and net weight. |
|---|---|
| GTAW / TIG | Straight cut-length filler rods by enquiry; specify diameter, rod length, package and identification. |
| Other processes | Submerged-arc or other bare-wire requirements are reviewed against the process, wire/flux combination and governing procedure. |
| Dimensions | Diameter and tolerance must be stated on the RFQ; availability is confirmed for the requested process and package. |
| Identification | Grade, classification, batch or heat reference, size and package identification as required by the purchase order. |
| Documentation | Certificate of conformance, chemistry or classification records and EN 10204 documents when agreed. |
Typical Application Areas
- Elevated-temperature stabilized stainless equipment
- Petrochemical and thermal-process fabrication
- Heat-resistant piping components
- Repair work governed by a qualified high-temperature WPS
These application areas are selection prompts rather than design approvals. Confirm filler compatibility through engineering review, the governing construction code and a qualified welding procedure.
Quality, Traceability and Welding Control
Before productionVerify grade, batch and WPS
Match package identification and certificates to the released procedure before wire enters production.
During weldingControl procedure variables
Use the qualified process, shielding system, heat-input range, interpass limit and contamination controls.
After weldingInspect to the project plan
Apply the specified visual, NDT, mechanical, chemistry or corrosion tests and retain traceability records.
Send a Complete ER347H Welding Wire RFQ
Include ER347H and the applicable standard revision, both base metals, welding process, wire or rod diameter, package or rod length, quantity, WPS or project specification, shielding requirements, inspection and certificate scope, delivery destination and relevant service conditions.
Related Welding Wire Products
- ER307 Stainless Steel Welding Wire | YS307 | DIN 1.4370
- ER308 Stainless Steel Welding Wire | YS308 | DIN 1.4316
- ER309 Stainless Steel Welding Wire | YS309 | DIN 1.4332/1.4337
- ER310 Heat-Resistant Stainless Steel Welding Wire | YS310 | DIN 1.4842
- ER2209 Duplex Stainless Steel Welding Wire | YS2209 | DIN 1.4462
- Browse All Metal Products
ER347H Welding Wire FAQs
What distinguishes ER347H from ER347L?
The suffixes identify different requested composition ranges. They should not be treated as interchangeable procurement descriptions.
Does ER347H alone establish creep performance?
No. Long-term performance depends on the welded joint, procedure, heat treatment, stress, temperature and applicable design code.
What should be included for high-temperature service?
Provide base metals, design temperature, pressure or stress, atmosphere, thermal cycles, WPS, inspection and certificate requirements.
What information controls final product acceptance?
The purchase order, cited classification and revision, approved WPS, agreed test plan, package identification and issued material documentation control acceptance.
Technical References
References define classification scope and selection context. They do not replace the project specification, current standard revision, qualified procedure or supplied certificate.
